商品名稱

污水節能曝氣溶氧機

我要詢價檢視詢價單

KTY污水節能曝氣溶氧機

SUPER-SAVE AERATOR

恭賀榮獲國科會全國酸明展優良獎

Awarded with National Innovative Medal

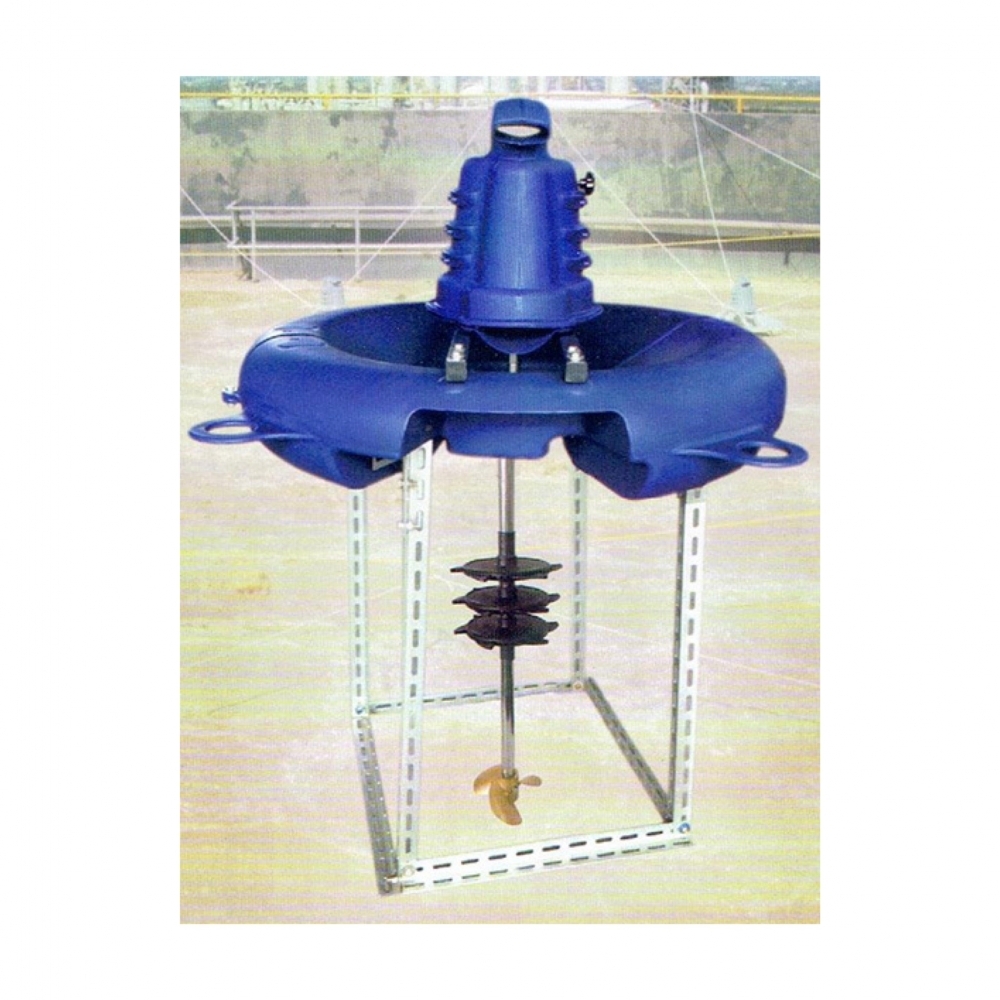

KTY888ST2.5負壓式高效率溶氧

曝氣及攪拌雙功能機型

KTY888ST2.5 Negative Pressure High-Efficient Aerator with Mixer Function

台塑六輕海豐污水廠測試實景

Real Test Scene at Haifong Sewage Treatment Plant of

Formosa Plastics Corp's Sixth Naphtha Cracker Complex

高效率負壓式曝氣溶氧機系列

High-Efficient Negative Pressure Aerator Series

桶槽式生物池

Tank-type Biological Pool

型號(Model):

KTY888ST 2.5

產品效能Product Performance

1.特殊高轉速線負壓馬達設計,特殊角度負壓葉片可自水中提供高速極細微化之噴射氣流。

Special design of high speed rifling negative pressure motor, negative-pressure blade with special angle to increase extremely fine high speed jet stream under water.

2.低力低耗能,可於特定區域提高污水溶氧量降低BOD及COD。

Low horse power, low energy consumption; raise sewage oxygen dissolved volume to reduce BOD and COD at specific area.

3.負壓原理強制將空氣帶入水中逆沖洗增氧,離心式負壓轉盤設計不會產生阻塞現象。

Take use of negative-pressure principle to force air into water for oxygen reverse flush. Centrifugal negative-pressure turntable design will not cause blocking phenomenon.

4.利用負壓葉片分割空氣分子,使其空氣更為緻化,達成高溶氧效率,無須使用大馬力鼓風機就可達到高溶氧之目的。

Take use of negative-pressure blades to cut air molecular to make air more meticulous to achieve high oxygen dissolution effect, no need of large horse power blower to achieve the purpose of high dissolved oxygen.

5.曝氣轉軸360度運轉設計,曝氧效率更佳,溶氧面積寛廣無死角,溶氧效率更佳。

360* aeration rotary shaft design makes better aeration effect, broader aeration area, no dead corner, and better oxygen dissolution efficiency.

桶槽式安裝效益 Effect of Tank-type Installation

1.免配曝氣盤及風管

No need to be equipped with aeration disc and air hose.

2.省電、維修簡單

Save energy, easy maintenance.

3.曝氣效率高,降低溫度

High aeration effect, reduce temperature.

4.攪拌曝氣均勻360度無死角

360 * mix the aeration, no dead corner.

5.不產生溫升

Temperature will not rise.

正隆造紙后里廠 KTY888ST3.2 溶氧測試表 Cheng Loop Corp.,Houli Plant KTY888ST3.2 Oxygen Dissolution Test List (正隆造紙后里廠使用實績 Real Use Performance at Cheng Loop Corp., Houli Plant)
項目 Item	日期 Date	5M溶氧平均值 Average Value	6M溶氧平均值 Average Value	日期 Date	污水進水量M³/HR Sewage into Water	廢水入口 Waste Water Inlet			放流水 Discharge Water
項目 Item	日期 Date	5M溶氧平均值 Average Value	6M溶氧平均值 Average Value	日期 Date	污水進水量M³/HR Sewage into Water	COD	SS	PH	COD	SS	PH
未安裝前數據 Data before install	20/2	未測量 Not measured	0.638mg/L	06/8	400	1595	1394	6.96	132	24	7.42
	20/3	未測量 Not measured	0.372mg/L	14/8	400	1671	1552	7.03	250	88	7.54
	21/4	未測量 Not measured	0.375mg/L	21/8	400	1614	2088	7.40	164	41	7.58
	20/5	未測量 Not measured	0.244mg/L	31/8	400	1785	2315	7.34	138	36	7.66
	18/6	未測量 Not measured	0.134mg/L	01/9	400	1709	2043	7.12	138	24	7.70
	23/7	未測量 Not measured	0.174mg/L	08/9	400	1785	1269	7.74	138	26	7.25
安裝後數據 Data after installed Model: KTY888ST3.2 Aerator	15/9	1.174mg/L	0.438mg/L	15/9	400	1557	1261	6.85	87	20	7.30
	16/9	1.173mg/L	1.010mg/L	16/9	400	1595	1795	7.26	98	21	7.60
	17/9	1.390mg/L	0.990mg/L	17/9	400	1519	2037	7.29	98	22	7.61
	18/9	1.420mg/L	1.110mg/L	18/9	400	1671	1622	7.23	98	20	7.60
	接觸池原開啟300HP鼓風機2部，本公司規劃關閉300HP鼓風機1部 Contact Pool initially started 300HP Blower x 2 sets Our company planned to shut down 300HP Blower x 1 ser 節省300HP鼓風機1部 Save 300HP Blower x 1 ser			曝氣池原開啟75HP表曝機9台，本公司規劃關閉75HP表曝機7台 Aeration Pool initially turned on 75HP Surface Aerator x 9 sets Our company planned turned on 75HP Surface Aerator x 7 sets 節省75HP表曝機2台 Save 75HP Surface Aerator x 2sets
	3馬力KTY888ST 3.2曝氣機15台 3HP KTY888ST 3.2 Aerator 15 sets			總馬力輸出：870馬力 Total HP Output：870HP 本案節省450HP電力成本，每月節省電費支出$604,260 This case saves 450HP power cost;save electricity cost $604,260 per month

機型Model	馬力HP	相數Phase	極數Pole	電壓Voltage	頻率Frequency	馬達轉速Motor RPM	進氣流量Intake Flow	攪拌深度Mixing Depth	配置面積Allocated Area	電流Current	重量Weight
單位Unit	HP	∮	P	V	HZ	RPM	L/min	M	m²	A	KG
KTY888ST 2.5	2.5	3	4	220~460	50/60	1550/1720	315	3	3x3	3.4~6.6	54
